SAML SP - OneLogin

SAML SP - OneLogin



General Setup
  1. Go to OneLogin administrator page (/admin)
  2. Click on "Apps"
  3. Click "Company Apps"
  4. Click "Add App"
  5. Search for "SAML"

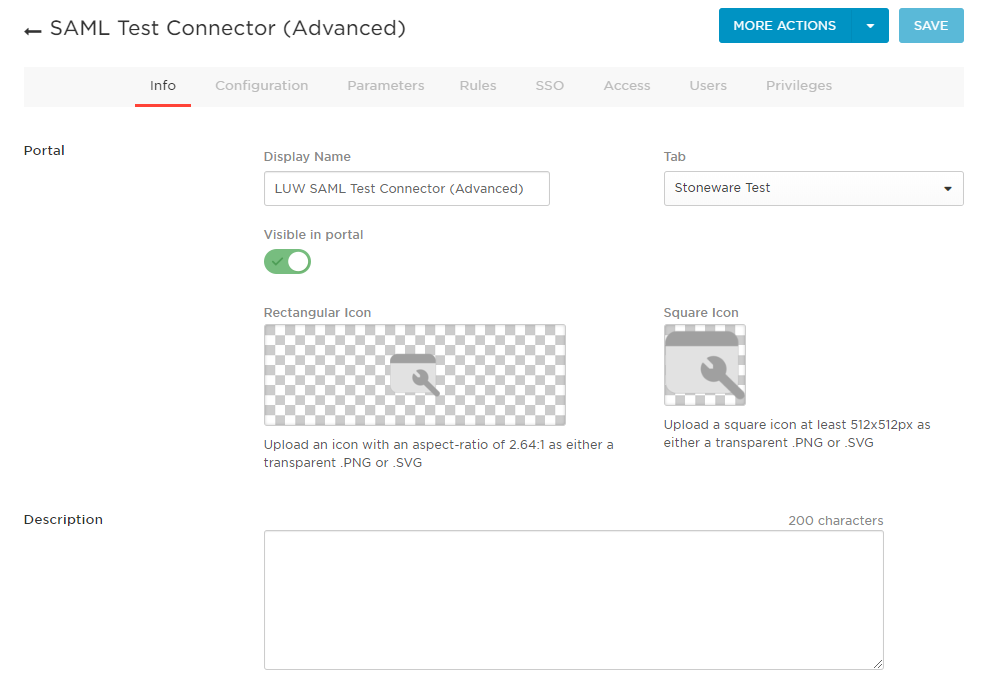

  6. Select "SAML Test Connector (Advanced)"
  7. Recommended to add "LUW" into Display Name
  8. Click "SAVE" button

  9. Click "Configuration"
  10. Enter the Audience - https://example.company.com/swSamlSp/sp
  11. Enter the Recipient - https://example.company.com/swSamlSp/acs
  12. Enter the ACS URL Validator - ^https:\/\/example\.company\.com\/swSamlSp\/acs$
    Needs to start with ^ character
    Needs to end with $ character
    Need \ in front of / and . characters
  13. Enter the ACS (Consumer URL) - https://example.company.com/swSamlSp/acs
  14. Changed the SAML signature element to "Assertion"
  15. Click "SAVE" button



Assign to user for testing
  1. Go to OneLogin administrator page (/admin)
  2. Click on "Users"
  3. Click on "All Users"
  4. Click on username
  5. Click "Applications"
  6. Click "+" to add a new app
  7. Select the "LUW SAML Test Connector (Advanced)"
  8. Click "CONTINUE" button
  9. Click "SAVE" button



Metadata URL

  1. Go to OneLogin administrator page (/admin)
  2. Click on "Apps"
  3. Click "Company Apps"
  4. Click on "LUW SAML Test Connector (Advanced)" app
  5. Click on "SSO" tab
  6. Click copy button on "Issuer URL"

    Example:
    https://app.onelogin.com/saml/metadata/5c0d538c-00a7-4053-89b9-b14c052970a1




Application URL
  1. Go to OneLogin administrator page (/admin)
  2. Click on "Apps"
  3. Click "Company Apps"
  4. Click on "LUW SAML Test Connector (Advanced)" app
  5. Click on "SSO" tab
  6. Click copy button on "SAML 2.0 Endpoint (HTTP)"

    Example:
    https://stoneware-test-dev.onelogin.com/trust/saml2/http-post/sso/932832
